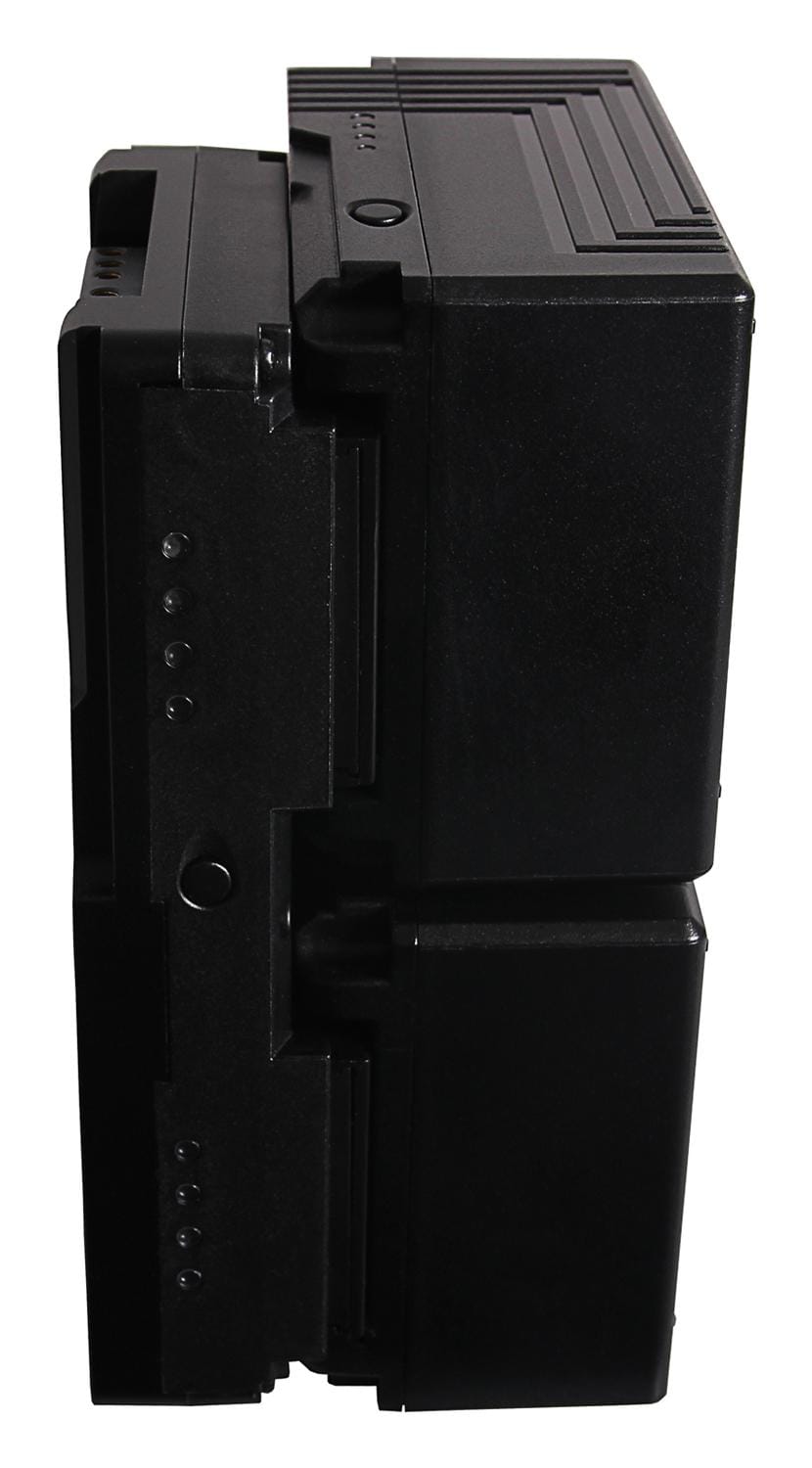

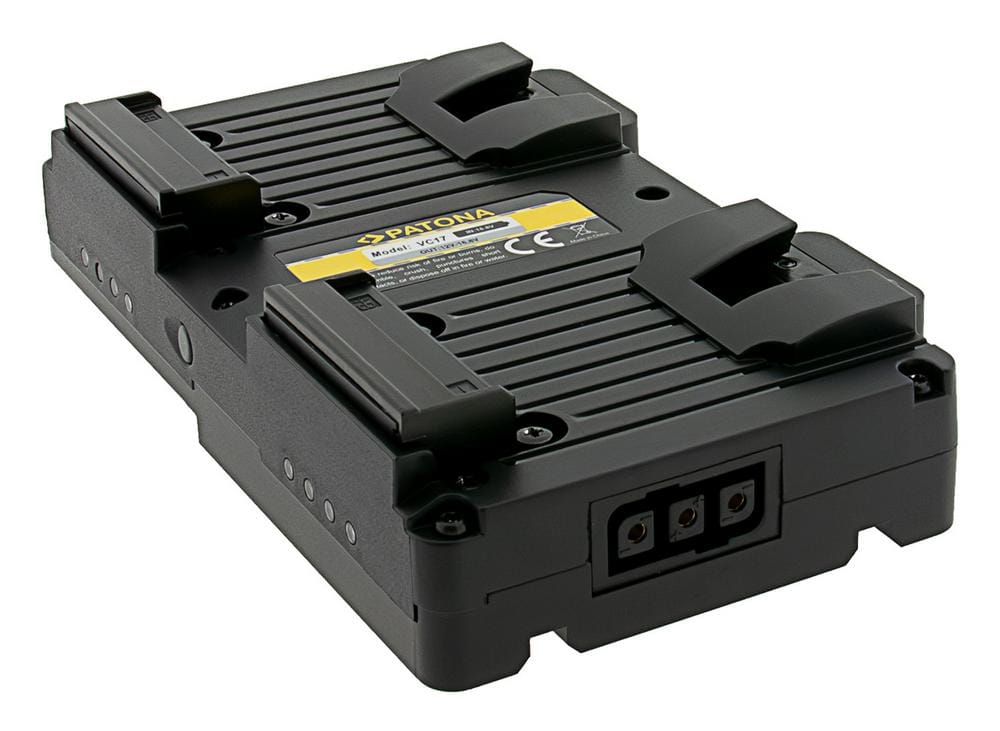

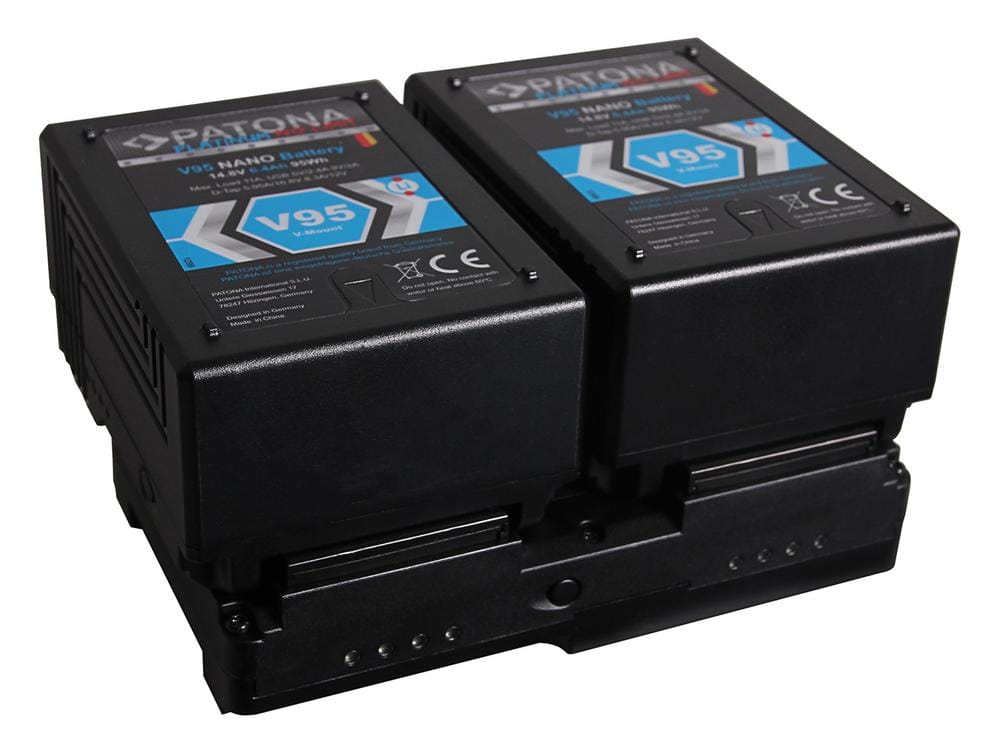

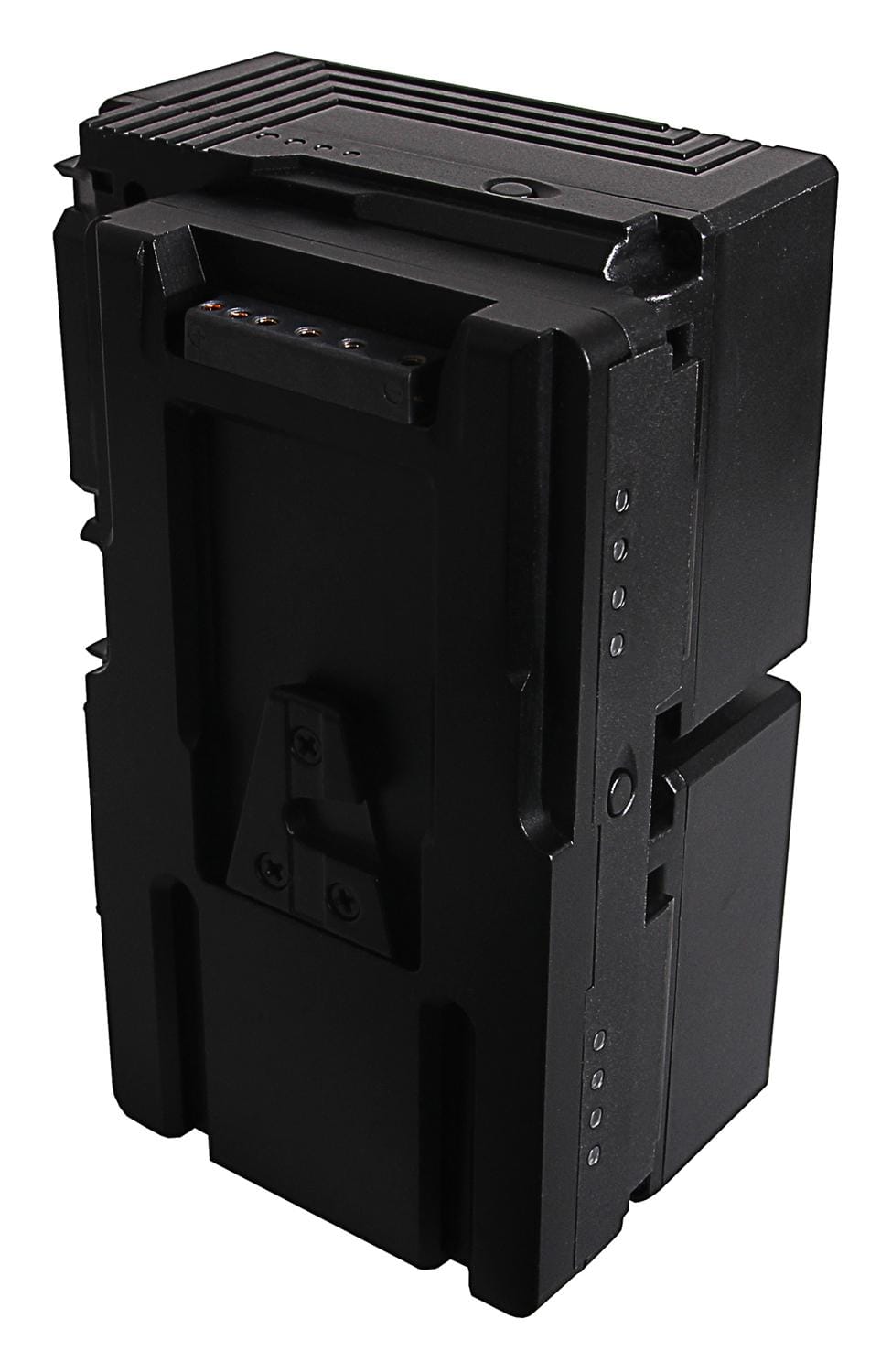

PATONA Hot Swap V-Mount Adapter for 2 PATONA Nano Batteries with D‑Tap Charging Function

🛠️ V-Mount Battery PATONA Platinum NANO V50 47Wh for RED ARRI Sony DSR 600P 650P 652P HDW 800P PDW 850 The V-Mount Battery PATONA Platinum NANO V50 provides reliable power with 47 Wh and 14.8 V for professional camera and lighting equipment. Thanks to its compact size (approximately 30 % smaller) and high‑current cell technology, it is ideal for demanding locations. ✨ Features & Benefits ⚡ High power output – up to 9 A continuous, 10 A overload protection 🔋 30 % smaller design with better performance compared to conventional V‑Mount batteries 🟢 4‑stage LED indicator shows remaining capacity at any time 🔌 P‑Tap / D‑Tap output – up to 100 W (12 V / 8.3 A or 16.8 V / 5.95 A) for lights and accessories 📱 USB output – normal mode 5 V / 2.4 A, fast mode 9 V / 2 A for charging smartphones, tablets, etc. 🛡️ Comprehensive protection circuits – cell balancing, temperature, over‑ and under‑charge 📊 Technical Specifications Voltage: 14.8 V Capacity: 3200 mAh / 47 Wh Cell type: Li‑Ion (4 × 1865 LG) Maximum load: 9 A (overload protection 10 A) P‑Tap/D‑Tap output: max. 100 W (12.0 V / 8.3 A or 16.8 V / 5.95 A) USB port: 5 V / 2.4 A (normal), 9 V / 2 A (fast) Weight: 316 g Dimensions: 75 × 105 × 34 mm Brand: PATONA Platinum 📱 Compatible Devices Sony DSR 600P, Sony DSR 650P, Sony DSR 652P, Sony HDW 800P, Sony PDW 850 RED ARRI V‑Mount systems Original batteries that can be replaced: Sony BP150w, BP‑150w, BPFL75, BP‑FL75, BPFLX75, BP‑FLX75, BPL40A, BP‑L40A, BPL60, BP‑L60, BPGL65, BP‑GL65, BPGL95, BP‑GL95, BPGL95A, BP‑GL95A, V‑mount / Bebob Vcine batteries V155RM‑CINE 📦 Package Contents 1 x V‑Mount Battery PATONA Platinum NANO V50 47 Wh

🛠️ PATONA Platinum NANO V95 V‑Mount 95Wh for Sony DSR 600P 650P 652P HDW 800P PDW 850 BP‑150w RED ARRI The PATONA Platinum NANO V95 V‑Mount battery provides 95 Wh (14.8 V × 6400 mAh) in a particularly compact form factor – about 30 % smaller than conventional V‑Mount batteries. Equipped with the latest 18650 Li‑Ion cell technology and comprehensive protection circuits, it is ideal for professional camera and lighting equipment that demand high power draws. ✨ Features & Benefits 🔋 High current capability – up to 11 A continuous load, 12 A overload protection 📏 Compact design – approx. 30 % smaller dimensions (75 × 105 × 50 mm) with low weight (508 g) 🛡️ Full protection circuitry – cell balancing, temperature, over‑ and under‑charge 💡 4‑stage LED indicator – always see remaining capacity 🔌 P‑Tap / D‑Tap output – up to 100 W (12 V / 8.3 A or 16.8 V / 5.95 A) for lamps and accessories 📱 USB output – normal mode 5 V / 2.4 A, fast‑charge mode 9 V / 2 A for smartphones/tablets ⚙️ Robust housing – modern, high‑quality design of the Platinum series 📊 Technical specifications Voltage: 14.8 V Capacity: 6400 mAh / 95 Wh Cell type: Li‑Ion (8 × 18650) Maximum draw: 11 A (continuous), 12 A (overload protection) P‑Tap/D‑Tap output: max. 100 W (12 V / 8.3 A or 16.8 V / 5.95 A) USB output: 5 V / 2.4 A (normal) – 9 V / 2 A (quick) Weight: 508 g Dimensions: 75 mm × 105 mm × 50 mm 📸 Compatible devices Sony DSR 250P Sony DSR 600P Sony DSR 650P Sony DSR 652P Sony HDW 800P Sony PDW 850 RED V‑Mount batteries Bebob V‑cine battery V155RM‑CINE 📦 Package contents 1 x PATONA Platinum NANO V95 V‑Mount 95 Wh battery

🔋 PATONA Platinum Nano V145 V‑Mount 142 Wh for Sony DSR 600P 650P 652P HDW 800P PDW 850 BP‑150W RED ARRI The PATONA Platinum Nano V145 V‑Mount battery delivers reliable high‑current power for professional V‑Mount cameras. With state‑of‑the‑art Li‑Ion cell technology it provides 142 Wh (9600 mAh) and can continuously handle loads up to 14 A. ✨ Features & Benefits 🔋 High‑capacity battery – 142 Wh (9600 mAh) for long recordings ⚡ High load capability – up to 14 A, max 100 W via P‑Tap/D‑Tap 🛡️ Comprehensive protection – cell balancing, temperature, over‑/discharge protection 💡 4‑stage LED indicator – always see charge level 🔌 Versatile outputs – P‑Tap/D‑Tap (12 V/8.3 A or 16.8 V/5.95 A) and USB (5 V/2.4 A, fast 9 V/2 A) 🪶 Compact and lightweight – 75 × 105 × 83 mm, 920 g 🛠️ Modern design – robust housing, sleek look 🔧 Technical specifications Voltage: 14.8 V Capacity: 9600 mAh / 142 Wh Cell type: Li‑Ion 12 × 18650 (LG) Max load: 14 A (over‑load protection 16 A) P‑Tap/D‑Tap output: max 100 W, 12 V/8.3 A or 16.8 V/5.95 A USB port: Standard 5 V/2.4 A, Fast 9 V/2 A Dimensions: 75 × 105 × 83 mm Weight: 920 g 📱 Compatible devices Sony DSR 600P, 650P, 652P, HDW 800P, PDW 850 Sony BP‑150W, BPFL75, BP‑FL75, BPFLX75, BP‑FLX75, BPL40A, BP‑L40A, BPL60, BP‑L60, BPGL65, BP‑GL65, BPGL95, BP‑GL95, BPGL95A, BP‑GL95A RED V‑Mount / Bebob Vcine batteries V155RM‑CINE 📦 Package contents 1× PATONA Platinum Nano V145 V‑Mount 142 Wh battery

🔋 PATONA Platinum NANO V190 V‑Mount 189 Wh for Sony DSR 600P 650P 652P HDW 800P PDW 850 BP‑150w RED ARRI The PATONA Platinum NANO V190 is a high‑current V‑Mount battery from the new Platinum series. It features modern Li‑Ion cell technology, a robust housing and is about 30 % smaller than conventional V‑Mount batteries while delivering higher performance. ✨ Features & Benefits 🧭 High discharge power – up to 14 A (max. 100 W) for demanding camera and lighting systems 📊 4‑stage LED display – always keep an eye on remaining charge 🔌 P‑Tap / D‑Tap output – up to 100 W (12 V / 8.3 A or 16.8 V / 5.95 A) for lights and accessories 💡 USB output – standard mode 5 V / 2.4 A, fast‑charge mode 9 V / 2 A for smartphones and tablets 🔒 Safety circuits – protection against over‑charge, deep‑discharge, overheating and cell imbalance ⚙️ Technical specifications Voltage: 14.8 V Capacity: 12 800 mAh / 189 Wh Cell type: Li‑Ion 16 × 18650 (LG) Maximum load: 14 A (up to 100 W) Weight: 959 g Dimensions: 75 × 105 × 83 mm 📸 Compatible devices Sony DSR‑250P, DSR‑600P, DSR‑650P, DSR‑652P, HDW‑800P, PDW‑850 (V‑Mount) Replacement for original batteries: Sony BP‑150w, BP‑150w, BPFL75, BP‑FL75, BPFLX75, BP‑FLX75, BPL40A, BP‑L40A, BPL60, BP‑L60, BPGL65, BP‑GL65, BPGL95, BP‑GL95, BPGL95A, BP‑GL95A, RED V‑Mount / Bebob V‑cine batteries V155RM‑CINE ⚠️ Transport note The battery holds more than 100 Wh of energy and is therefore subject to dangerous‑goods regulations (GGBefG, GGVSEB, ADR, RID, IMDG‑Code, IATA). Transport is only permitted under special conditions. 📦 Package contents 1 × PATONA Platinum NANO V190 V‑Mount battery 189 Wh

🔋 PATONA Platinum V‑Mount Battery BP‑75W PD65 74 Wh The PATONA Platinum V‑Mount Battery BP‑75W is the powerful mobile energy source for professional cameras, monitors and other devices. With a 74 Wh capacity, 65 W USB‑C Power Delivery and versatile connectors (V‑Mount, D‑Tap, USB‑A, USB‑C, DC) it keeps any production running. ✨ Key Features 🔌 USB‑C PD Input & Output – 65 W fast charging and discharging for compatible devices ⚡ High Capacity – 74 Wh (14.8 V / 5 000 mAh) for long run times 🔄 Versatile Connectors – V‑Mount, 2 x D‑Tap, USB‑A, USB‑C, DC output ⚡ Fast Charging via USB‑C – Directly over USB‑C without a separate charger 📊 Clear Display – Shows charge level, voltage, capacity and power in real time 🛡️ Safety Mechanisms – Protection against over‑charge, deep discharge, short‑circuit and overheating 🪶 Light & Compact – Only 468 g and handy for mobile use 💻 Compatible Devices RED camera systems ARRI cameras Blackmagic cameras Sony camera systems Laptops (e.g. MacBook, other USB‑C‑PD‑compatible notebooks) Tablets, smartphones, monitors, LED lights and other PD‑compatible devices 🔧 Technical Specifications Type: Li‑Ion Capacity: 14.8 V / 5 000 mAh / 74 Wh Dimensions: 11.89 × 7.99 × 4.27 cm (L × W × H) Weight: 468 g Input V‑Mount/D‑Tap: 16.8 V / 10 A Input USB‑C (PD65W): 5‑20 V, up to 3.25 A Output USB‑C (PD65W): 5‑20 V, up to 3.25 A Output USB‑A: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A Output DC 5521: 8 V / 3 A, 12 V / 3 A, 16.8 V / 5 A Operating temperature: 0 °C – 45 °C, Charging temperature: –10 °C – 60 °C, Storage temperature: –10 °C – 50 °C 📦 Package Includes 1 x PATONA Platinum V‑Mount Battery BP‑75W 1 x PATONA Platinum Hardcase 1 x USB‑C to USB‑C cable 1 x Card with QR‑code to the user manual
