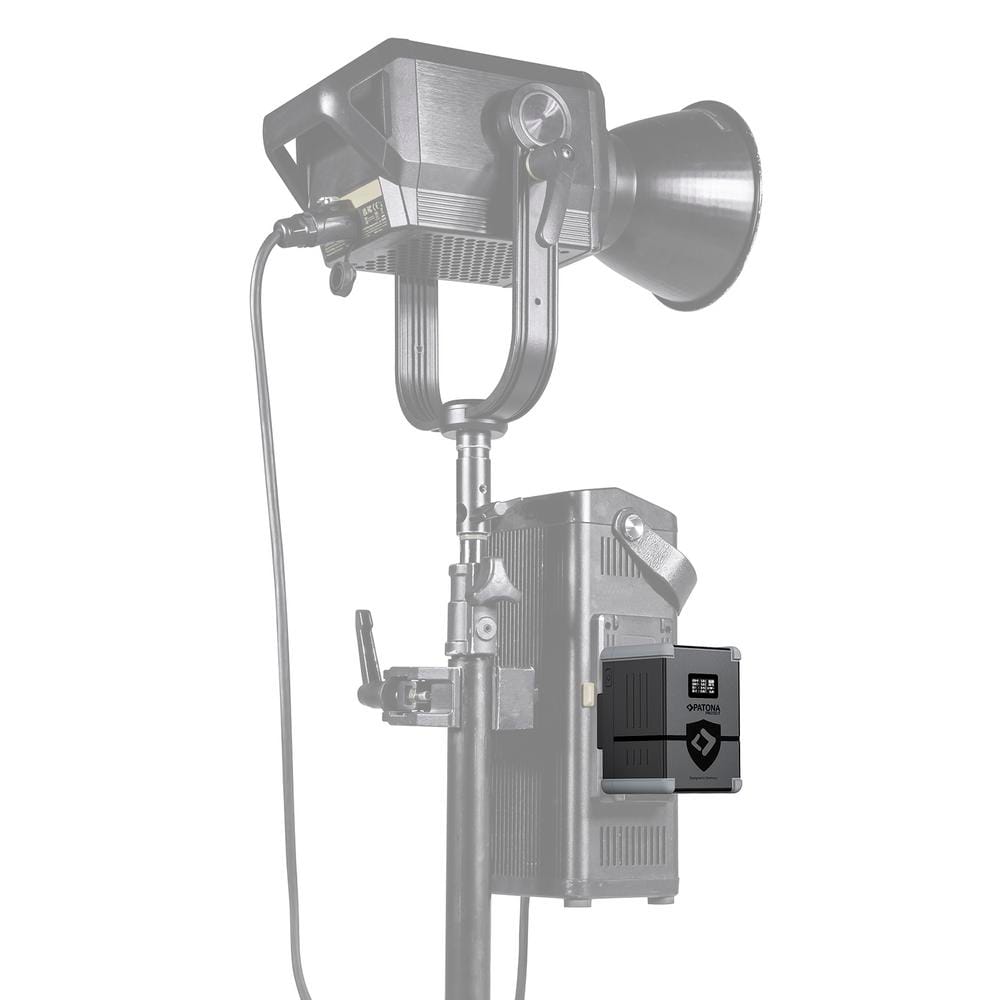

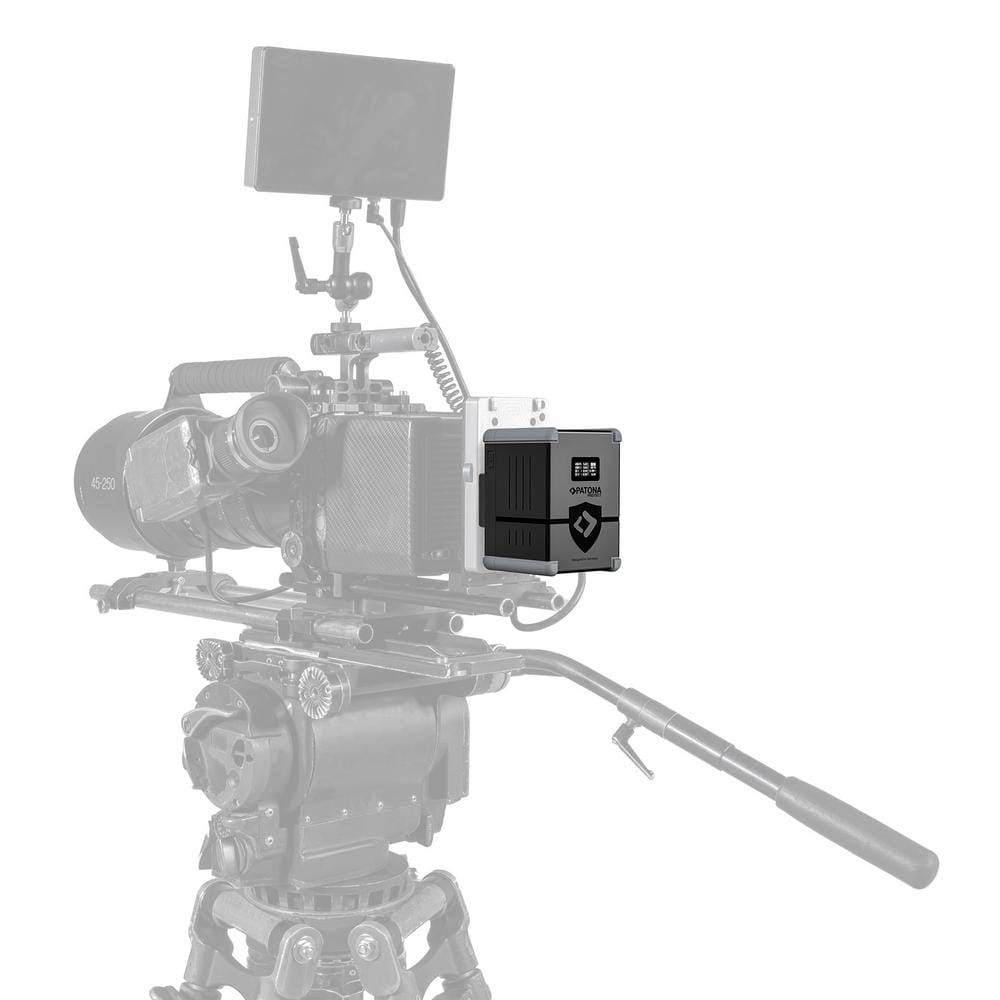

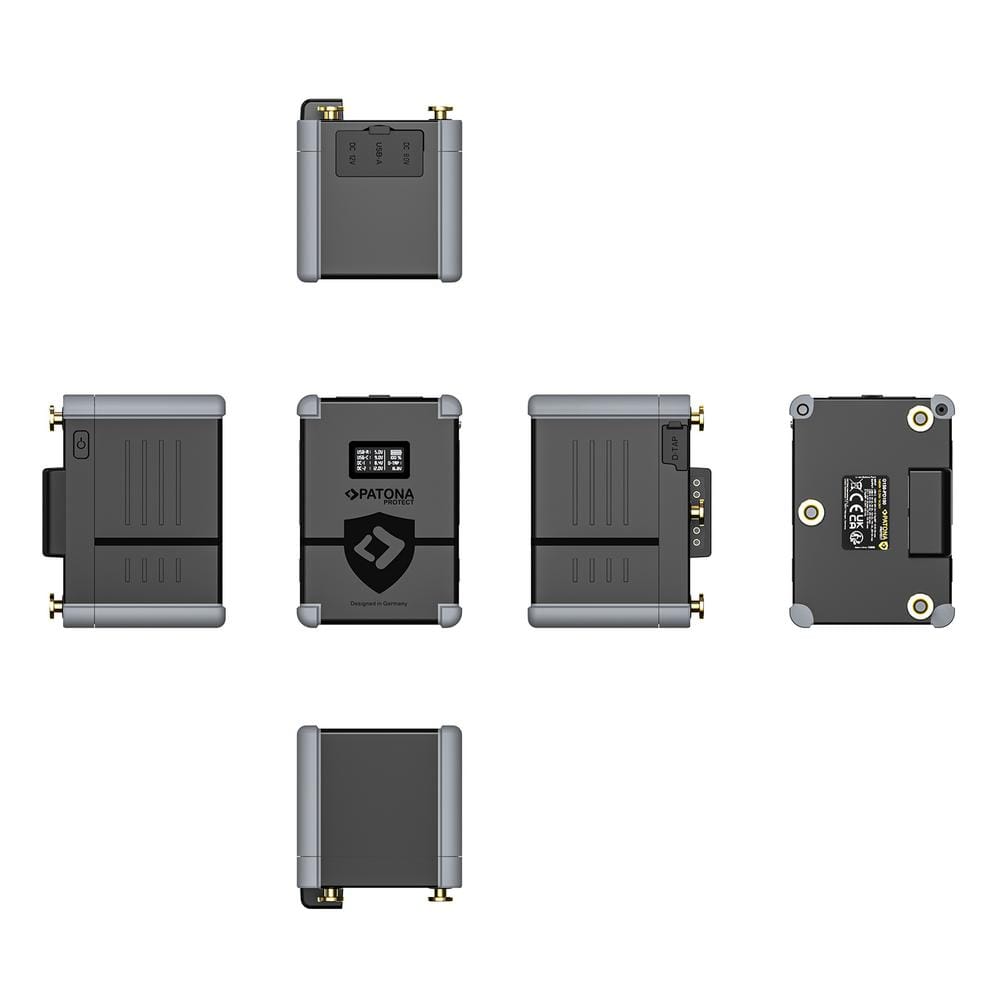

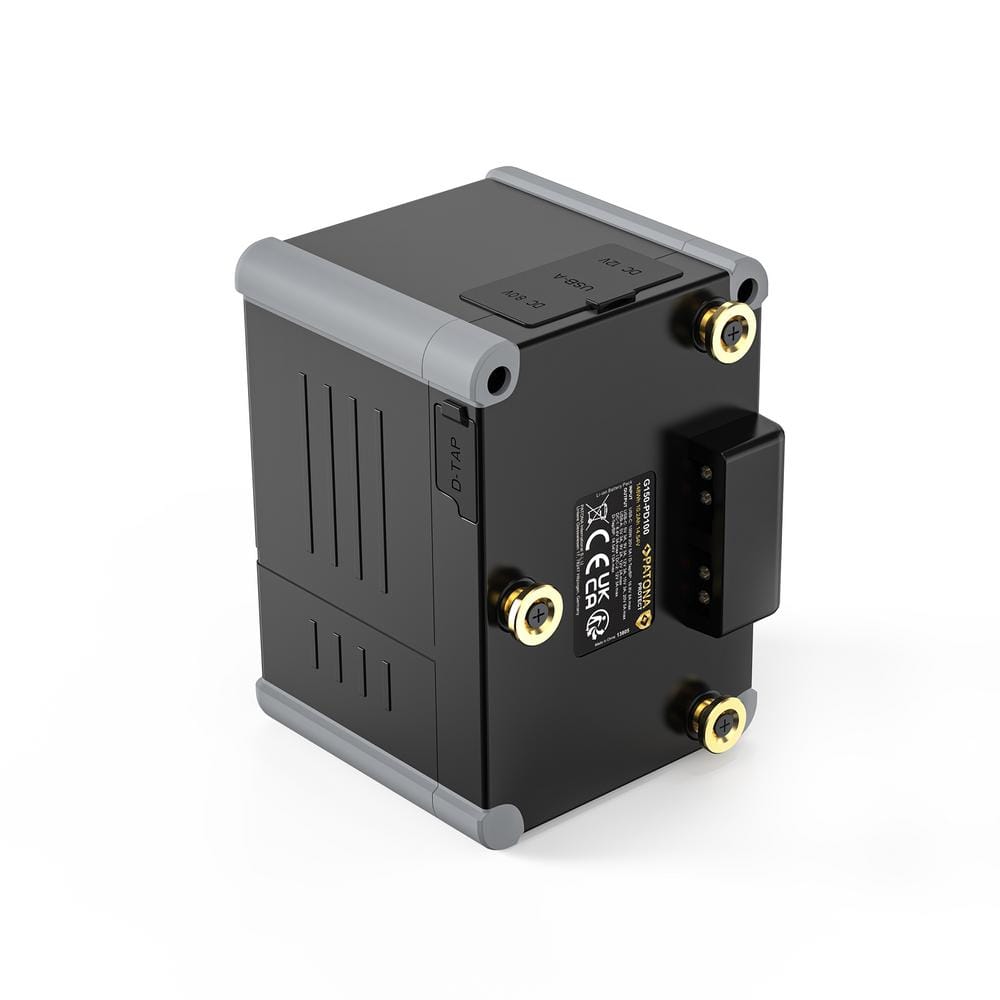

PATONA PROTECT Gold Mount Battery G150 PD100 148Wh USB‑C USB‑A D‑Tap 2x DC‑out

🔋 PATONA PROTECT Gold Mount Battery G300 PD100 297Wh The PATONA PROTECT Gold Mount Battery provides extremely high safety, long‑lasting performance and incredible versatility. The fire‑resistant, heat‑tolerant housing (V1 material) withstands temperatures up to 90 °C without deformation – perfect for professional continuous use. ✨ Main Features & Benefits 🛡️ Fire‑resistant housing – protects the battery in high ambient temperatures 💥 Shock & drop protection – corner bumpers prevent damage 🔌 Multiple outputs – USB‑C PD100 W, USB‑A, 2 × D‑Tap and 2 × DC‑Out enable simultaneous powering of several devices ⚡ Fast charging – USB‑C PD100 W fills the battery in 2.5‑3.5 h 🔋 Large capacity – 20 400 mAh / 297‑305 Wh for extended use 🔧 Modern safety controller – protects against over‑charge, overload, under‑voltage, short‑circuit and overheating 🔋 Low self‑discharge – stays ready even after long periods of inactivity ⚙️ Technical Data Capacity: 20 400 mAh / 14.54 V / 297 Wh (range 297‑305 Wh) Cell type: LG MJ1, 24 Li‑Ion cells Max discharge current: 13 A Input USB‑C: PD100 W / 20 V / 5 A (full charge 2.5‑3.5 h) Input BP / D‑Tap: 16.8 V / 8 A Output USB‑C: PD100 W (5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A) Output USB‑A: 5 V/3 A, 9 V/2 A, 12 V/2 A (max 24 W) Output D‑Tap: 100 W BP Output: 14.4 V/13 A (max.) Connector type: Gold Mount Operating temperature: -10 °C to +60 °C Weight: 1 555 g Dimensions: 139.3 × 93.1 × 104.8 mm 📱 Compatible Devices Canon cameras and camcorders Panasonic video cameras Sony Alpha systems All devices with Gold Mount (V‑Mount, G‑Mount, etc.) Laptops, smartphones, tablets, LED lighting systems, wireless video transmitters and other professional gear 📦 Package Contents 1 × PATONA PROTECT Gold Mount Battery G300‑PD100 1 × USB‑C cable 1 × USB‑A cable 1 × D‑Tap cable

🔋 PATONA PROTECT Gold Mount Battery G99‑PD100 99 Wh The PATONA PROTECT Gold Mount Battery is an extremely robust power solution for professional photo‑ and video‑setups. With 99‑102 Wh (6 800 mAh) and a fire‑resistant housing made of V1 material it endures temperatures up to 90 °C and features low self‑consumption. ✨ Highlights & Benefits 🔥 Fire‑resistant, heat‑resistant housing – up to 90 °C without deformation 💪 Shock and drop protection via bumpers on the corners 🔋 High capacity of 99‑102 Wh (6 800 mAh) for long continuous use ⚡ Multiple outputs: USB‑C PD 100 W, USB‑A, D‑Tap, 2 × DC‑out 📊 OLED display shows all essential information 🔌 Fast charging via USB‑C PD 100 W in 2.5–3.5 hours 🛡️ Modern safety electronics protect against over/under‑charge, short‑circuit and overheating 🔧 Technical specifications Capacity: 6 800 mAh / 14.54 V / 99 Wh (99‑102 Wh) Cell type: LG MJ1 (8 Li‑Ion cells) Input USB‑C: PD 100 W / 20 V / 5 A (charging time 2.5–3.5 h) Input BP / D‑Tap: 16.8 V / 8 A Output USB‑C: PD 100 W (5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A) Output USB‑A: 5 V / 3 A, 9 V / 2 A, 12 V / 2 A (max. 24 W) Output D‑Tap: 100 W (16.8 V / 8 A) Output DC‑1: 8.4 V / 3 A (max.) – Output DC‑2: 12 V / 3 A (max.) Max discharge current: 13 A Connector type: Gold Mount Weight: 620 g Dimensions: 110 × 78.4 × 68.4 mm Operating temperature: –10 °C to +60 °C 📱 Compatible devices DSLR cameras and camcorders Monitors, tablets and smartphones Wireless video transmitters LED lights and other accessories Professional photographer setups and photo shops 📦 Package contents 1 × PATONA PROTECT Gold Mount Battery G99‑PD100 99 Wh 1 × USB‑C cable 1 × USB‑A cable

🛡️ PATONA PROTECT Gold Mount Battery G200 PD100 198 Wh The PATONA PROTECT Gold Mount Battery offers an extremely high capacity of 198‑204 Wh (13 600 mAh) in a fire‑resistant, heat‑resistant housing. Developed for the continuous use of professional photographers and filmmakers, it delivers long‑lasting power for camera and broadcast equipment as well as a powerful power bank for laptops, smartphones and LED lights. ✨ Features & Benefits 🔥 Fire‑resistant, heat‑resistant housing (V1 material) – withstands temperatures up to 90 °C 🔋 Large capacity 198‑204 Wh – up to 13 600 mAh for extended operation 🛡️ Shock and drop protection at the corners – protects against damage ⚡ USB‑C PD100 W input – full charge in 2.5‑3.5 hours 📊 OLED display – shows all essential information 🔌 Multiple outputs – USB‑C PD100 W, USB‑A, D‑Tap, 2 × DC‑Out 🔋 Low self‑discharge – ready to use after long storage 🛠️ Advanced protection circuit – prevents over‑charge, overload, under‑voltage, short‑circuit and overheating 🔧 Technical specifications Capacity: 13 600 mAh / 14.54 V / 198 Wh (up to 204 Wh) Cells: 16 × LG MJ1 Li‑Ion Input: USB‑C PD100 W (20 V / 5 A), 2.5‑4.5 h charging; BP 16.8 V / 8 A; D‑Tap 16.8 V / 8 A Outputs: USB‑C PD100 W (5‑20 V, up to 5 A) USB‑A (5‑12 V, max 24 W) D‑Tap 150 W BP 14.4 V / 13 A (max) 2 × DC‑Out (up to 13 A) Max discharge current: 13 A Operating temperature: –10 °C to +60 °C Weight: 1065 g Dimensions: 110.5 × 78.4 × 105.6 mm Mount type: Gold Mount 📱 Compatible devices DSLR cameras and camcorders (V‑Mount, Gold‑Mount compatible) Laptop, smartphone, tablet LED lights, monitors, wireless video transmitters and other broadcast equipment 📦 Package includes 1 × PATONA PROTECT Gold Mount Battery G200 PD100 198 Wh 1 × USB‑C cable (PD100 W) 1 × USB‑A cable User manual

🖥️ PATONA Premium D‑Tap Charger 2 A for Sony BP‑95W BP‑190WS DSR 250P 600P 650P 652P The PATONA Premium D‑Tap Charger reliably delivers 2 A at 16.58 V and is specifically designed for professional Sony batteries and camcorders. The V‑Mount power supply stands out with high safety, certified quality standards and a long service life – ideal for continuous use by professionals and heavy users. ✨ Features & Benefits 🔌 V‑Mount connector – flexible integration into professional rig systems ⚡ 2 A output current – fast and safe charging 🌍 Wide‑voltage input 200‑240 V – usable worldwide 🛡️ Safety features – charge‑current limiting, temperature and over‑current protection 🔧 Robust construction – high‑quality plastics and verified electronics 📷 Compatible devices Sony BP‑95W, BP‑190W, BP‑150W Sony BP‑GL65, BP‑GL95, BP‑GL95A Sony DSR‑250P, DSR‑600P, DSR‑650P, DSR‑652P Sony HDW‑800P, PDW‑850 📦 Package contents 1 x PATONA Premium D‑Tap Charger (V‑Mount) 1 x power cable

🛠️ PATONA Premium Dual Gold Mount Charger for Panasonic AN-190W BL‑BP150 BP‑150S with 4‑Pin XLR Cable The PATONA Dual Gold Mount Charger allows simultaneous charging of two batteries, regardless of capacity, and provides a 4‑Pin XLR DC output for external devices. Ideal for professional camera and camcorder setups. ✨ Features & Benefits ⚡ Dual Charging – two batteries at once, independent of each other 🔌 Gold Mount Connectors – 16.8 V / 3 A (single) or 16.8 V / 2 A (parallel) 🎚️ 4‑Pin XLR DC Output – 16.5 V / 4.5 A (max 75 W) for third‑party devices 🛡️ Microcontroller‑based charging tech – automatic voltage detection, over‑charge and over‑heat protection 🪶 Compact wing stand – stable placement with small footprint 🔴 Multi‑color LED indicator – status of mains, batteries and charging process 🔌 Compatible Cameras AJA CION Camera Body, Anton Bauer video camera battery, ARRI Alexa Mini, Blackmagic Design URSA, Canon EOS C100 C300 C500, Cine Alta Cameras, Ursa, Ursa Mini Gold Mount, Dionic Series, JVC GY HM850E HM890E, Panasonic AG, HPX393 HPX600MC, Sony PMW‑EX3, Sony F5 F55 🔋 Compatible Batteries JVC AN‑190W BL‑BP150 BP‑150S BP‑150W BP‑90W Panasonic AN‑190W BL‑BP150 BP‑150S BP‑150W BP‑90W Dionic 90 160 📦 Package Includes 1 × Dual Gold Mount Charger 1 × Power cable 1 × 3 m 4‑Pin XLR cable 1 × QR code to manual

🔌 PATONA Premium PD450W Multiport Charger The PATONA Premium PD450W Multiport Charger is the ultimate power pack for all your devices. With a robust aluminium housing, nine ports and intelligent temperature regulation it delivers up to 450 W – perfect for smartphones, laptops, tablets and accessories. ✨ Features & Benefits ⚡ 9 ports – 6 × USB‑C, 2 × USB‑A, 1 × DC 🚀 Up to 100 W Power Delivery per USB‑C – ideal for power‑hungry devices 🖥️ Real‑time colour display shows charging status and power values 🌡️ Intelligent temperature regulation and comprehensive safety protocol for safe charging 🛡️ Aluminium alloy – robust, durable and stylish 🛫 Travel‑friendly & compact – reduces cable clutter and boosts productivity 🎨 Futuristic design in black + green, elevates any workspace 🔧 Technical Specifications Colour: Black + Green Material: Aluminium alloy Dimensions: 164.5 mm × 106 mm × 47 mm Net weight: 886 g Input: AC 100‑240 V, 50/60 Hz, max 5 A Maximum output: 450 W Supported protocols: FCP, AFC, SCP, DRP, TRY SRC, PD 3.0, QC 2.0/3.0/3.0+, etc. 📦 Package Includes 1 × PATONA Premium PD450W Multiport Charger 1 × PATONA AC power cable 3 × PATONA Premium PD100W USB‑C cables (50 cm) 3 × PATONA Premium PD100W USB‑C cables (100 cm) 1 × PATONA Premium Carrying Case 1 × QR code for user manual

🧩 PATONA Premium 100W PD USB‑C to USB‑C Cable 50 cm with E‑Marker Chip With the PATONA Premium USB‑C to USB‑C Cable you can quickly and safely charge all common devices that feature a USB‑C port with up to 100 W (Power Delivery). The cable also supports data transfer via USB 2.0 (480 Mbps) and includes an integrated E‑Marker chip that reliably detects and regulates the maximum power output. ✨ Features & Benefits ⚡ 100 W Power Delivery – provides 5 V 3 A, 9 V 3 A, 12 V 2.5 A, 15 V 2 A and 20 V 1.5 A for fast charging. 🔌 USB‑C to USB‑C – reversible connector, ideal for laptops, smartphones, tablets and more. 📡 Data Transfer – USB 2.0 up to 480 Mbps. 🛡️ E‑Marker Chip – automatically detects required power and protects devices from overload. 🔧 High‑quality copper wires – 80 × 0.08 mm² + 16 × 0.08 mm⁴ for a stable and durable connection. 🎨 Design – black housing with green accents, 50 cm length for flexible use. 🔌 Compatible Devices Smartphones and tablets with USB‑C connector Laptops and ultrabooks with USB‑C Power Delivery Power banks and external chargers with USB‑C output Monitors and docking stations with USB‑C input or output ports 📦 Package Contents 1 × PATONA Premium 100W PD USB‑C to USB‑C Cable (50 cm)

🧩 PATONA Premium PD 100W USB‑C to USB‑C Cable – 100 cm The PATONA Premium 100 W USB‑C to USB‑C Cable enables fast charging and data transfer for all devices with a USB‑C port. With an integrated E‑Marker chip it supports Power Delivery up to 100 W and a USB 2.0 data rate of 480 Mbps. ✨ Features & Benefits ⚡ 100 W Power Delivery – 5 V 3 A, 9 V 3 A, 12 V 2.5 A, 15 V 2 A, 20 V 1.5 A 🔌 USB‑C to USB‑C – universal connector for modern devices 📶 Data rate 480 Mbps (USB 2.0) – fast data transfer 🧩 E‑Marker Chip – safe operation and automatic cable recognition 🧵 High‑quality copper wires – 80 × 0.08 mm² + 16 × 0.08 mm⁴ for stable connection 🎨 Color – stylish black‑green 📏 Length 100 cm – ideal for stationary or mobile charging 🔧 Technical specifications Type: USB‑C to USB‑C cable PD: 100 W (5 V 3 A / 9 V 3 A / 12 V 2.5 A / 15 V 2 A / 20 V 1.5 A) Data rate: USB 2.0 / 480 Mbps E‑Marker Chip Copper wires: 80 strands 0.08 mm² + 16 strands 0.08 mm⁴ Color: Black/Green Length: 100 cm Brand: PATONA 📱 Compatible devices Smartphones and tablets with USB‑C port Laptops and ultrabooks with USB‑C Power Delivery Power banks and external chargers with USB‑C input Monitors and docking stations supporting USB‑C 📦 Package contents 1 x PATONA Premium 100 W USB‑C to USB‑C Cable (100 cm)

🔧 PATONA V‑Mount Mounting Plate for V‑Mount Batteries The PATONA V‑Mount mounting plate allows secure attachment of V‑Mount batteries to gimbals, camera rigs and cages. Its compact design made from high‑quality aluminium alloy adds only 84 g of weight. ✨ Features & Benefits 🛠️ Universal compatibility – fits V‑Mount batteries from various brands and models 🔩 Multiple mounting holes – flexible attachment to gimbals, rigs or cages 🔒 Secure hold – keeps the battery reliably in position 🪶 Compact design – only 84 g, minimal burden on the setup ⚙️ Premium material – aluminium alloy for durability 📌 Compatible Devices Gimbals Camera rigs Cages 📦 Package Contents 1× PATONA V‑Mount mounting plate
